model number | Overall Dimensions | |||||
Width | Length | Height | ||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | |

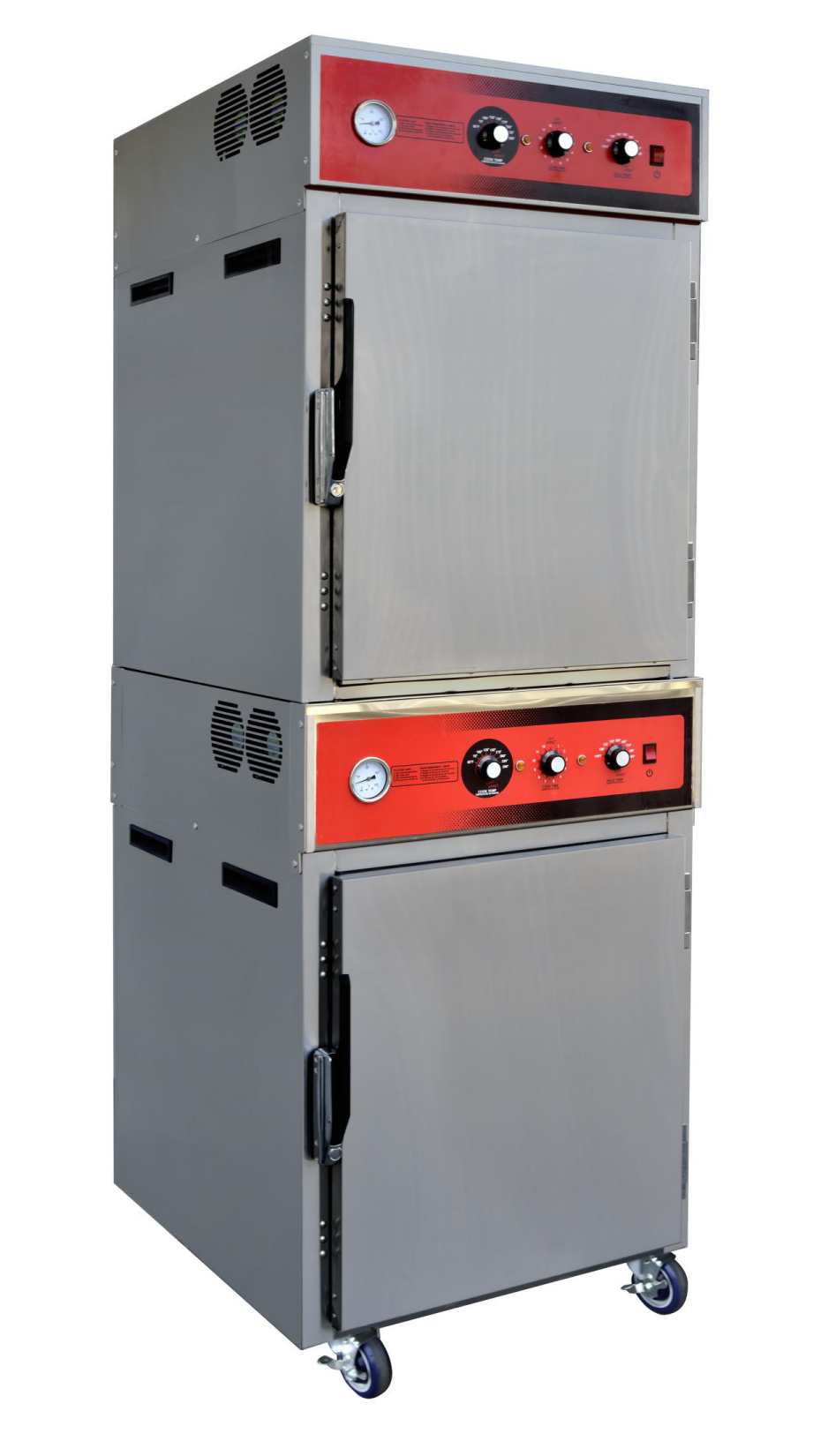

OVHD | 31.1 | 790 | 33.47 | 850 | 80.12 | 2035 |

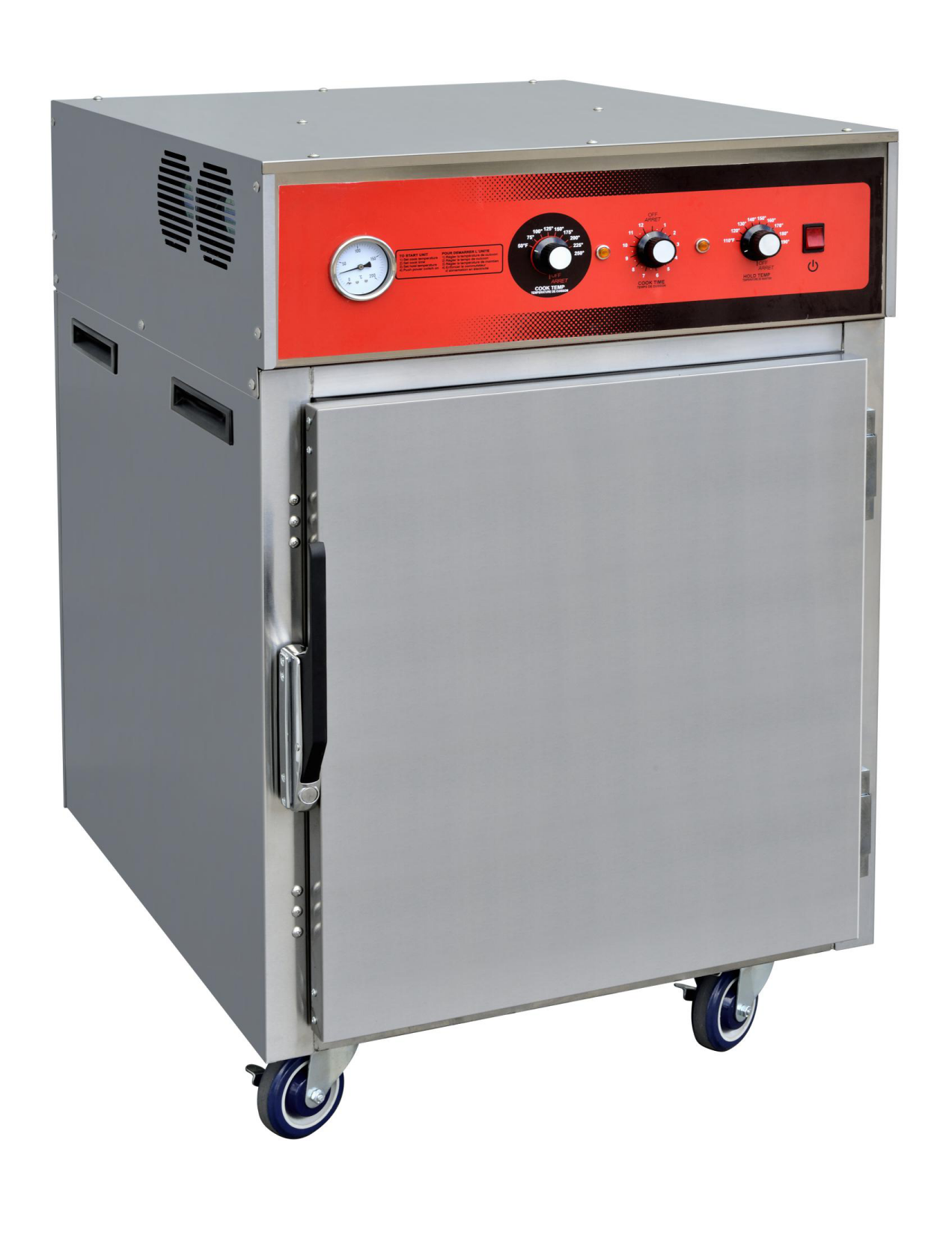

OVHS | 31.1 | 790 | 33.47 | 850 | 42.6 | 1080 |
Caster information | ||||||
4x1-1/4 " four polyurethane swivel plate casters,two with brakes |
Item# | Name | QTY | Photo |
11 | Heating Element | 1 |
|
12 | Fan | 2 |
|
13 | Relay | 1 |
|
15 | Timer | 1 |
|
16 | Knob | 3 |
|
17 | Light | 2 |
|
18 | Blower motor | 1 |
|
19 | Main switch with red light | 1 |
|
20-1 | Thermostat-Cooking Function | 1 |
|
20-2 | Thermostat-Holding Function | 1 |
|
21 | Thermometer | 1 |
|
22 | Temperature limiter thermostat 120F | 1 |
|
23 | Temperature limiter thermostat 210F | 1 |
|
25 | Terminal block | 3 |
|
32 | Power bushing | 1 |
|
37 | Power Cord | 1 |
|
