Heater Proofers - Non-Insulated and Insulated High Performance

Heater Proofers - Non-Insulated and Insulated High Performance

100% Pre-Tested Electrical Assembly

￥ 0.00
0.00


100% Pre-Tested Electrical Assembly

Heater Proofers - Non-Insulated and Insulated High Performance
100% Pre-Tested Electrical Assembly

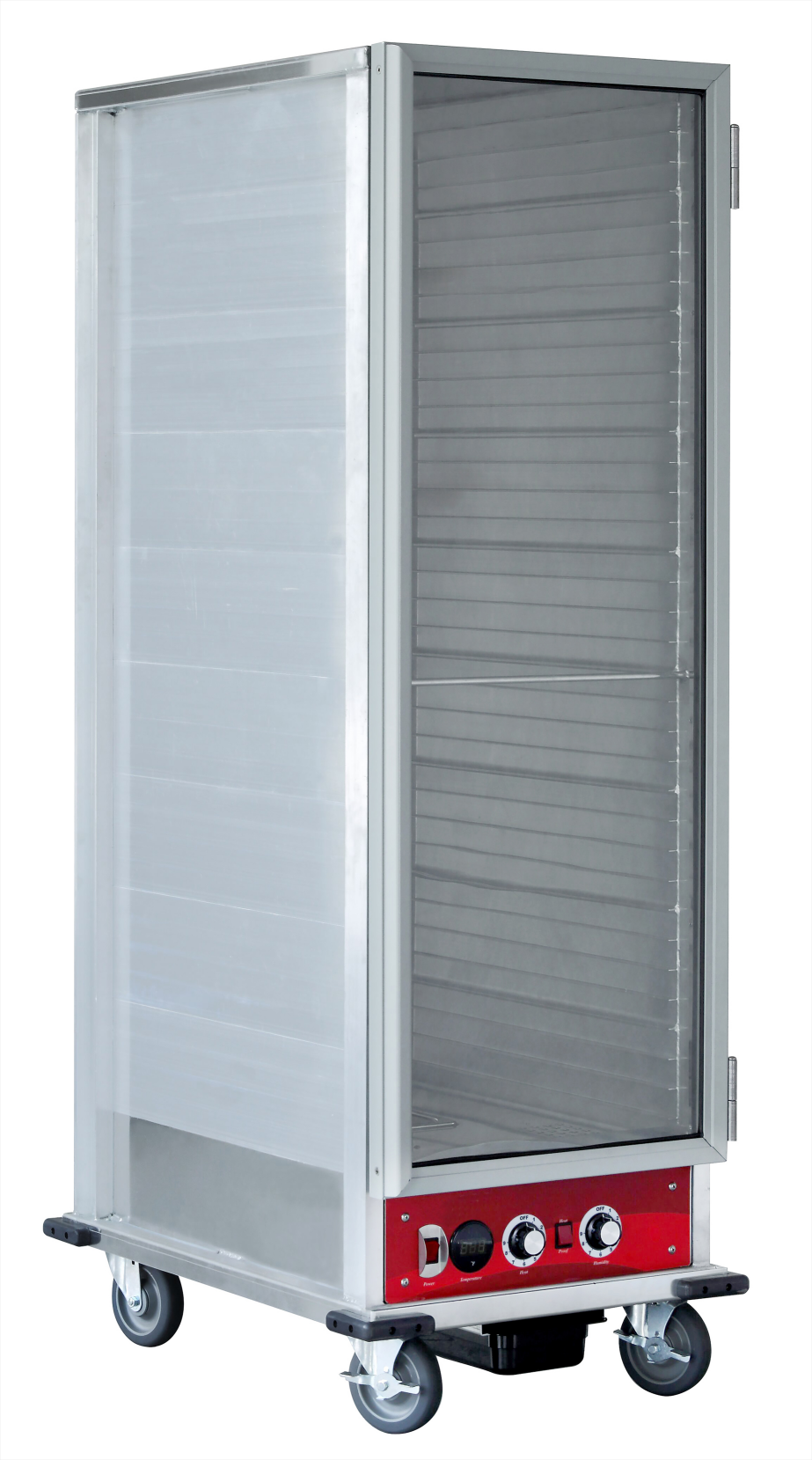

ITEM#1836HP
Overall Dimensions:23"X 33.15"X 66.50"
All welded heavy duty construction, channel construction designed for durability, easily to clean.
Air baffle and circulating air blower provide uniform heat distribution throughout cabinet.
Heavy duty 5x1-1/4" Top plate swivel caster with precision bearing PU wheel for easy maneuverability and stability. Two casters with brakes in the front.
Fit 18x26" pans.
Easy dual proof/heat control:
“Proof” mode: Humidity from 30% to 95%.
Temperatures up to 115°F (46°C)
“Heat” mode: Nominal Temperatures up to 185°F (85°C)
The caibinets come with corner bumpers to protect furniture and fixture.
UL approved clear PC door, extruded powder coated aluminum door frame provides durability.
Gasket and magnets are installed inside door  frame, make door tightly fit to the door frame.
Door lifts off for  easy cleaning and accessibility.
Control drawer is removable for quick and easy cleaning and maintenance.
All controls are accessible without opening cabinet door.
Easy to read LED thermometer.
UL and NSF approved.


Electrical specifications:
120 Volt - 60 Cycle A.C.
1500 Watts, 14.00 AMPS, 110 Outlet.

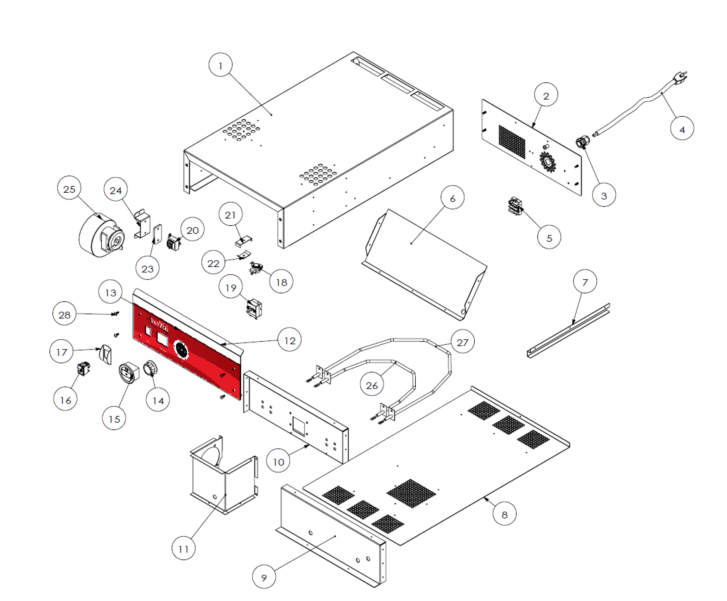

No. Photo Part No. Part Description HCD1500 Qty HCD1500H Qty
03
HCD-030 Cable Bushing 1 1
04

HCD-031 Power Cable 1 1
05
HCD-026 Terminal Block 1 1
14
HCD-035 Knob 2 1
15 HCD-024 Thermometer 1 1
20
HCD-017
 		Transformer 1 1
16
HCD-016 Main Switch with light Red 1 1
18
HCD-019 Limit Temp. Thermostat   1 1
19
HCD-034 Temp. Thermostat 2 1
27
HCD-011 Heating element    900W 1 1
26
HCD-010 Heating element   600W 1 1
29
HCD-008 SS Water Pan 不锈钢盘 1 N/A
32
HCD-009 Heating element 600W 1 N/A
36
HCD-036 Switch Heat/Proof Red 1 N/A
25
HCD-012 Blower and Motor Assembly 1 1
13
HC1836HP-028 Plastic Pan 1 1




No. Photo Part No. Part Description HCD1500 Qty HCD1500H Qty
03 HCD-030 Cable Bushing 1 1
04 HCD-031 Power Cable 1 1
05 HCD-026 Terminal Block 1 1
14 HCD-035 Knob 2 1
15 HCD-024 Thermometer 1 1
20 HCD-017 Transformer 1 1
16 HCD-016 Main Switch with light Red 1 1
18 HCD-019 Limit Temp. Thermostat   1 1
19 HCD-034 Temp. Thermostat 2 1
27 HCD-011 Heating element    900W 1 1
26 HCD-010 Heating element   600W 1 1
29 HCD-008 SS Water Pan 不锈钢盘 1 N/A
32 HCD-009 Heating element 600W 1 N/A
36 HCD-036 Switch Heat/Proof Red 1 N/A
25 HCD-012 Blower and Motor Assembly 1 1
13 HC1836HP-028 Plastic Pan 1 1
